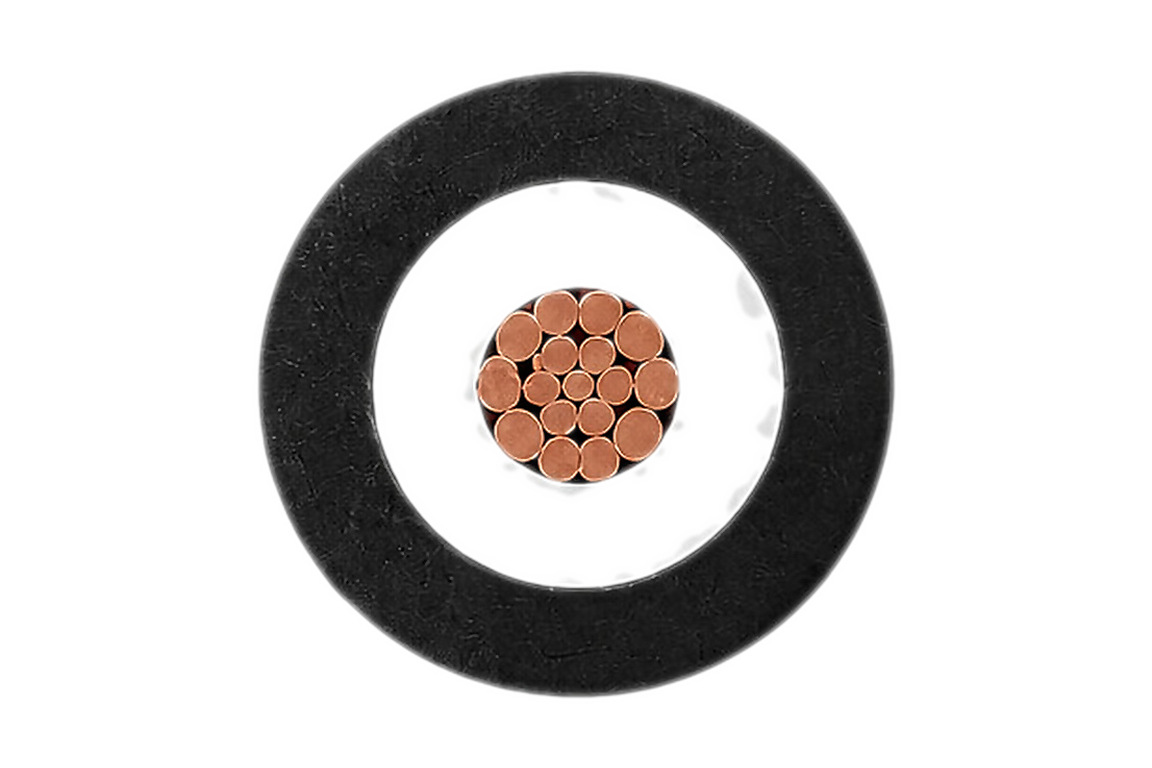

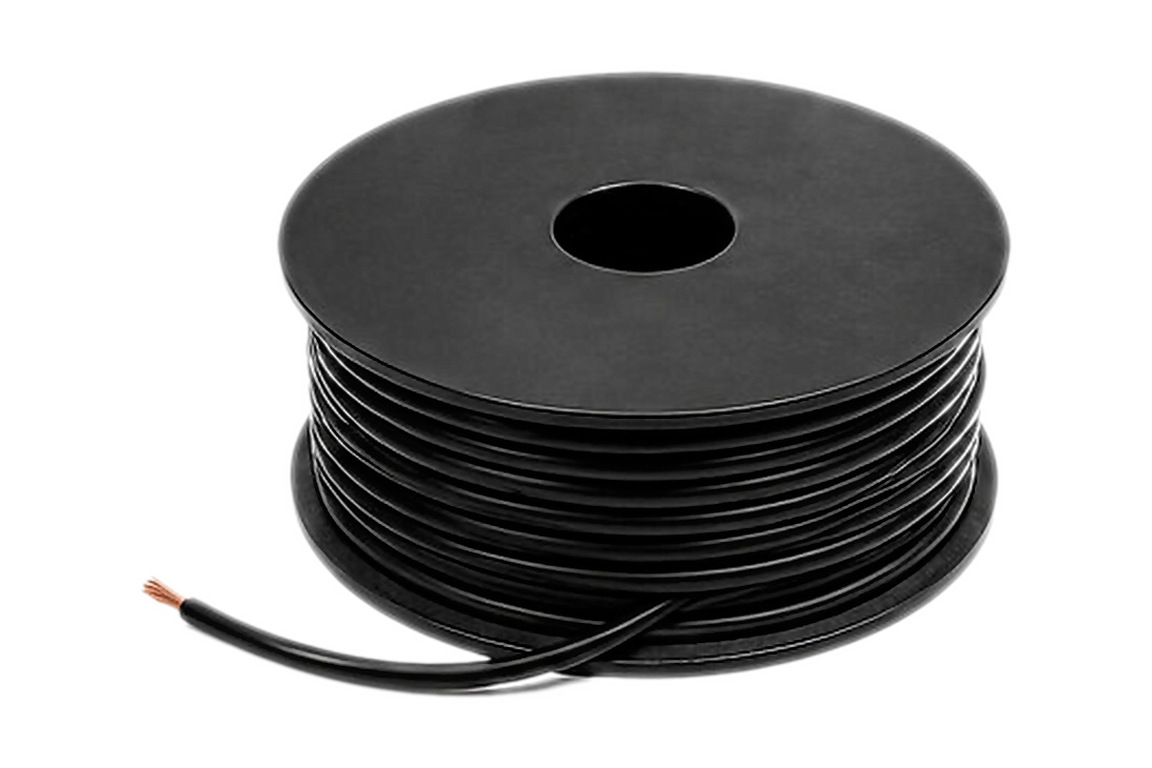

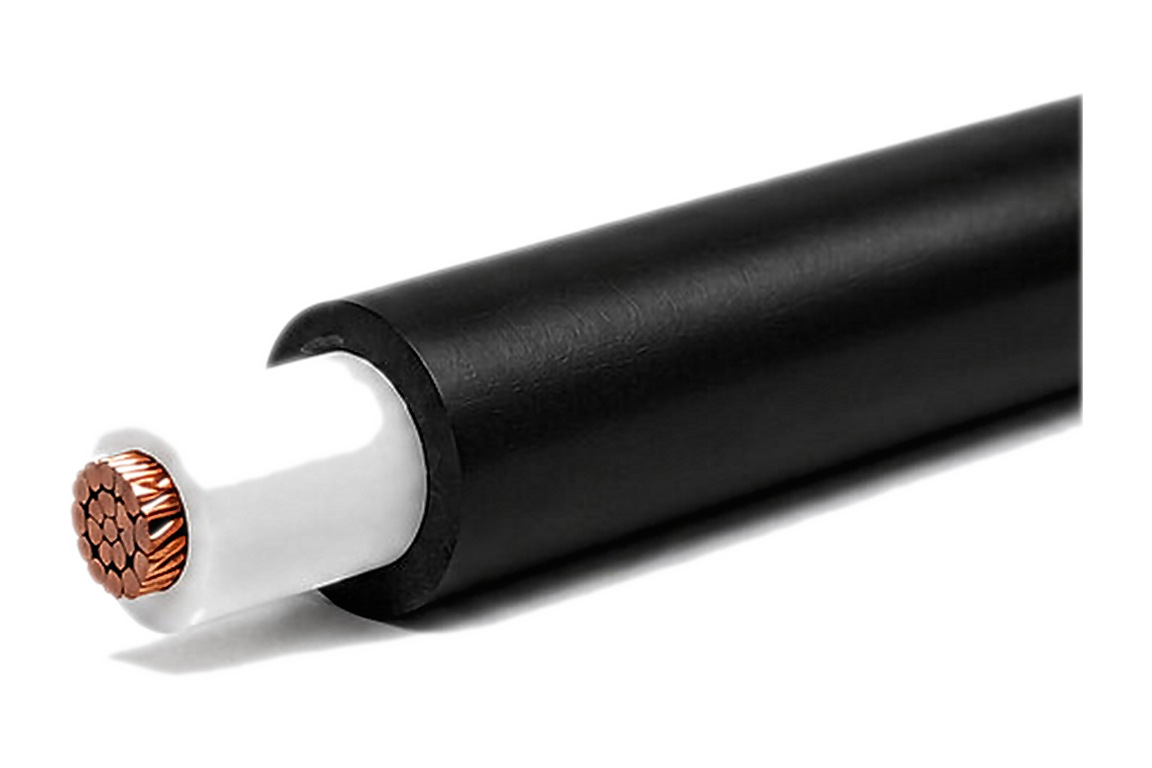

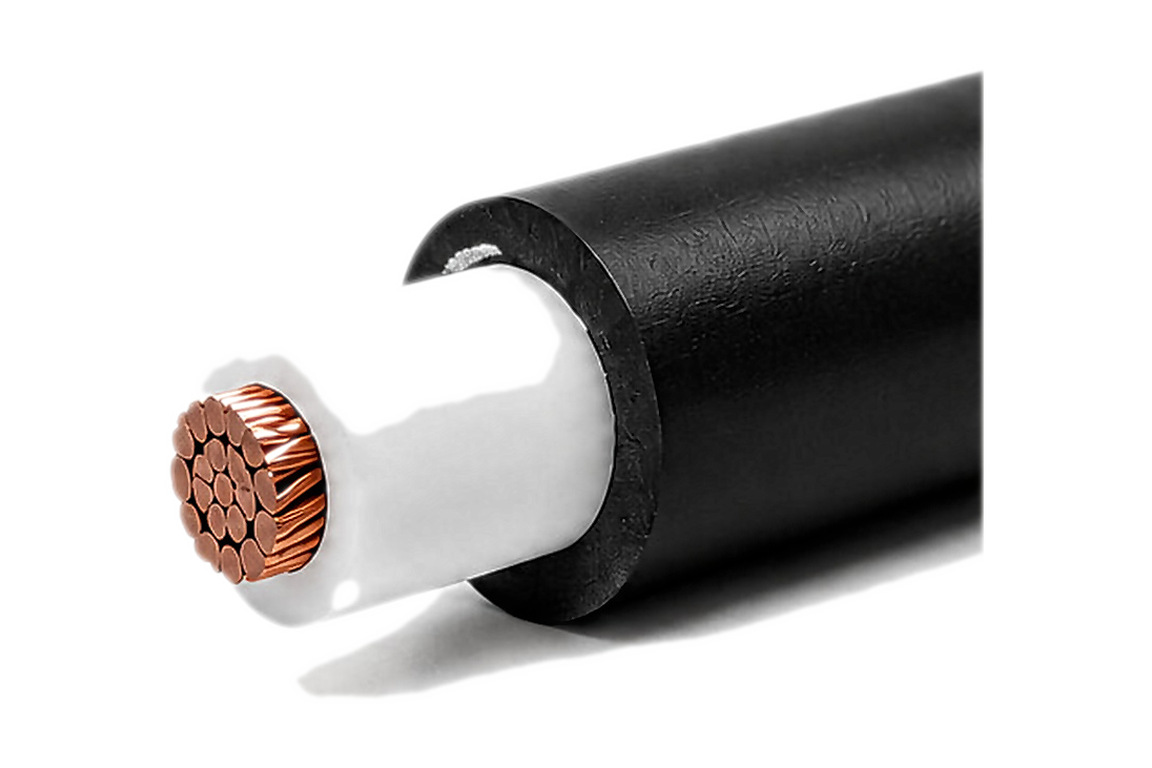

AutoFLEX High Tension Ignition Cable
Single core, double-insulated PVC ignition cable (high tension).
Application
Where AutoFLEX High Tension Ignition Cable is used
High-tension ignition leads, manufactured in accordance with BS 6862 Part 1 1971 where applicable — plain copper conductors, PVC insulated and sheathed, rated 90°C.
- ✓Double insulated (insulated and sheathed) construction
- ✓Manufactured in accordance with BS 6862 Part 1 1971, where applicable
- ✓Plain copper conductors, PVC, 90°C
Part Numbers & Dimensions
Full technical reference
All figures are from our current production datasheet. Contact us for the signed PDF version for procurement.
Europe Standard
| Part No | Conductor Spec | Cross Section (mm²) | Max Overall Dia (mm) | Sheath Colours | Reel Sizes (m) |
|---|---|---|---|---|---|
| 5713-DI | 16/0.30 | 1.13 | 6 | Black, Red | 30, 100 |
| 5714-DI | 21/0.30 | 1.5 | 7 | Black, Red | 30, 100 |
Aus / NZ Standard
| Part No | Cores | Conductor Spec | Cross Section (mm²) | Insulation (mm) | Sheath (mm) | Amp Rating at 30°C | Normal Dia (mm) | Reel Sizes (m) |
|---|---|---|---|---|---|---|---|---|
| 5813-DI | 1 | 14/0.32 | 1.13 | 0.4 | 0.8 | 10 (20*) | 3.8 | 30 / 100 |
| 5814-DI | 1 | 23/0.32 | 1.85 | 0.4 | 0.8 | 15 (28*) | 4.2 | 30 / 100 |
| 5815-DI | 1 | 36/0.32 | 2.9 | 0.4 | 0.8 | 23 (37*) | 5 | 30 / 100 |
| 5816-DI | 1 | 57/0.32 | 4.85 | 0.4 | 0.8 | 50 (48*) | 5.7 | 30 / 100 |
Standards & Compliance
Certified to recognised standards
