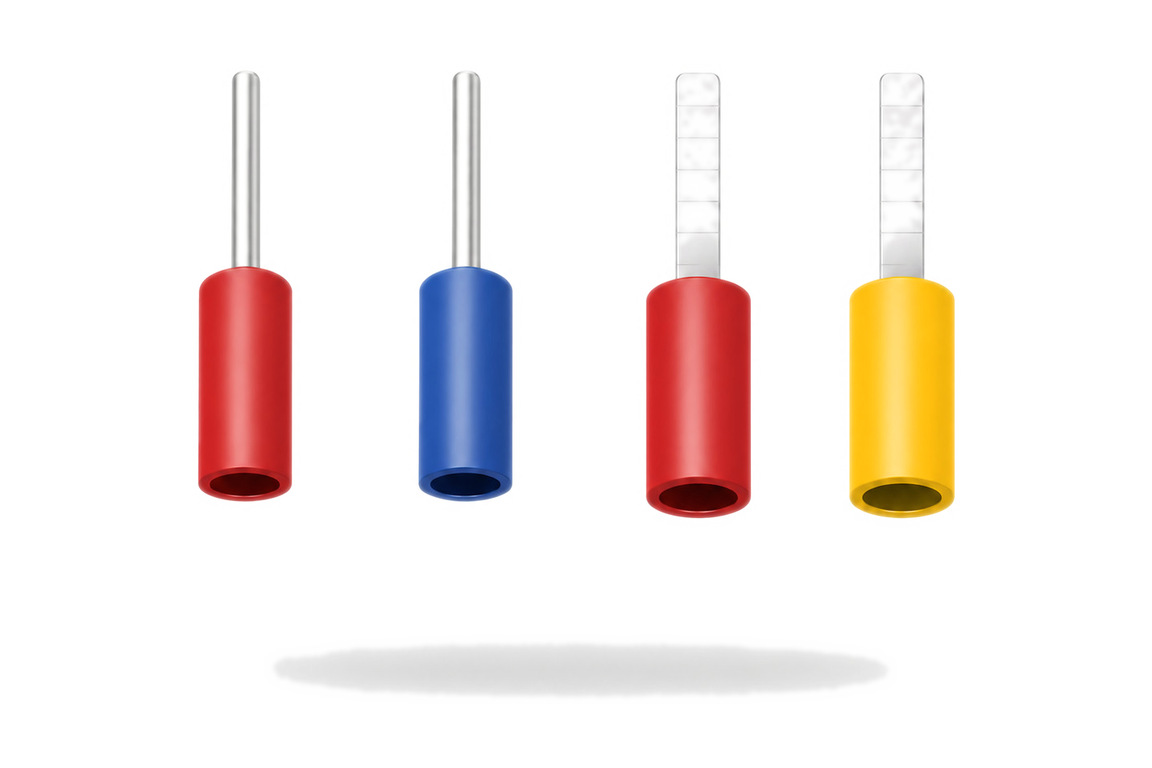

Blade & Pin Terminals
Blade and pin-style crimp terminals for plug-style connectors.
Application
Where Blade & Pin Terminals is used
Blade terminals mate into flat plug receptacles; pin terminals insert into round sockets — both used in connector blocks and OEM wiring harnesses.
- ✓Maximum electrical rating: 600 volts
- ✓Maximum temperature: 75°C
- ✓Terminal material: copper, tin plated
- ✓Insulation material: vinyl (PVC)
Part Numbers & Dimensions
Full technical reference
All figures are from our current production datasheet. Contact us for the signed PDF version for procurement.
Blade Terminals
| Item No | W (mm) | F (mm) | L (mm) | PCS/Pack | Colour | Wire Range / Max Current |
|---|---|---|---|---|---|---|
| T2080-2.3 | 2.3 | 10.0 | 20 | 1000 | Red | 0.5–1.5mm², 19A |
| T2080-2.4 | 2.4 | 14.0 | 24.0 | 1000 | Blue | 1.5–2.5mm², 27A |
| T2080-4 | 4 | 14.0 | 25.2 | 1000 | Yellow | 4–6mm², 48A |
Pin Terminals
| Item No | W (mm) | F (mm) | L (mm) | PCS/Pack | Colour | Wire Range / Max Current |
|---|---|---|---|---|---|---|
| T2090-1.6 | 1.6 | 10.0 | 20.0 | 1000 | Red | 0.5–1.5mm², 19A |
| T2090-1.6 | 1.6 | 10.0 | 20.0 | 1000 | Blue | 1.5–2.5mm², 27A |
| T2090-2.8 | 2.8 | 13.0 | 26.0 | 500 | Yellow | 4–6mm², 48A |
Standards & Compliance
Certified to recognised standards
