Quick Disconnect Terminals
Male, female, piggy-back and bullet quick-disconnects for plug-and-socket wiring.
Application
Where Quick Disconnect Terminals is used
Fast make/break connections for accessory wiring, relay panels and OEM harnesses — male/female tab pairs, piggy-back (female+male) stacking connectors, and round bullet connectors.
- ✓Maximum electrical rating: 300–600 volts depending on style
- ✓Maximum temperature: 75°C
- ✓Terminal body: brass or copper, tin plated
- ✓Insulation: vinyl, some fully insulated
Part Numbers & Dimensions
Full technical reference
All figures are from our current production datasheet. Contact us for the signed PDF version for procurement.

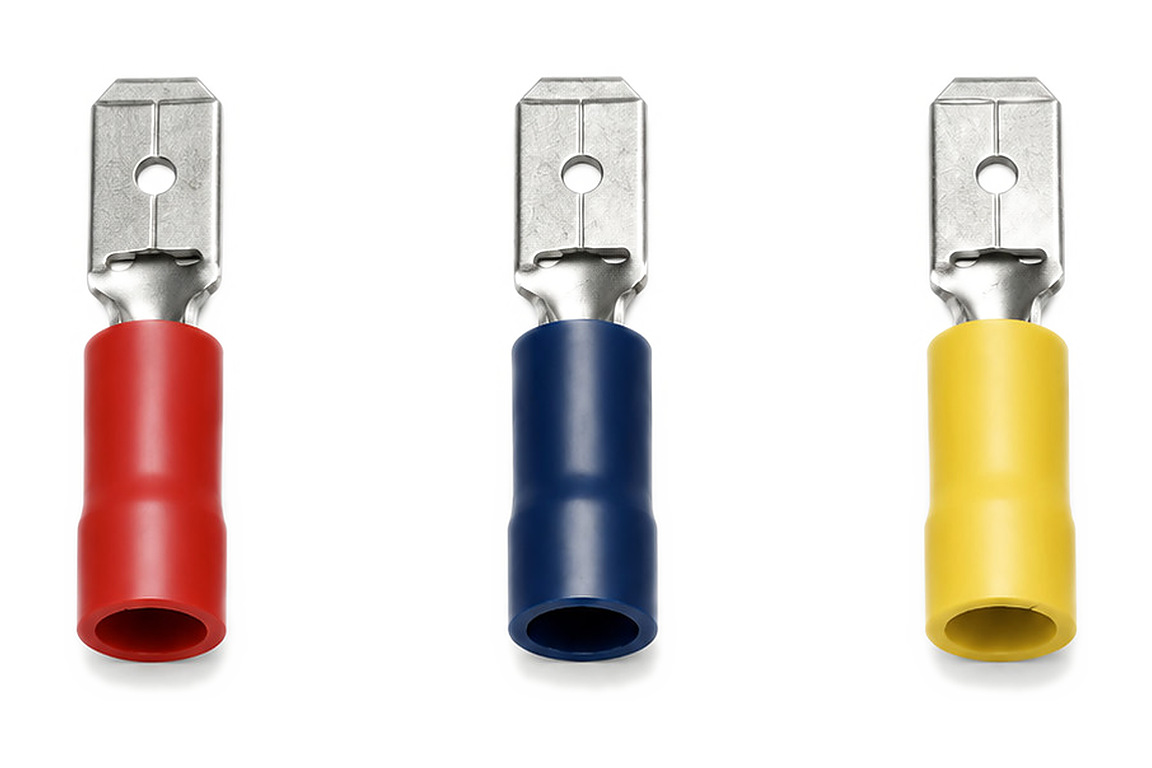

Male Quick Disconnect
| Item No | Nema Tab (mm) | L (mm) | PCS/Pack | Colour | Wire Range / Max Current |
|---|---|---|---|---|---|
| T2201 | 0.8x4.75 | 19.0 | 1000 | Red | 0.5–1.5mm², 10A |
| T2203 | 0.8x6.38 | 21.0 | 1000 | Blue | 1.5–2.5mm², 27A |
| T2204 | 0.8x6.38 | 25.0 | 500 | Yellow | 4–6mm², 24A |

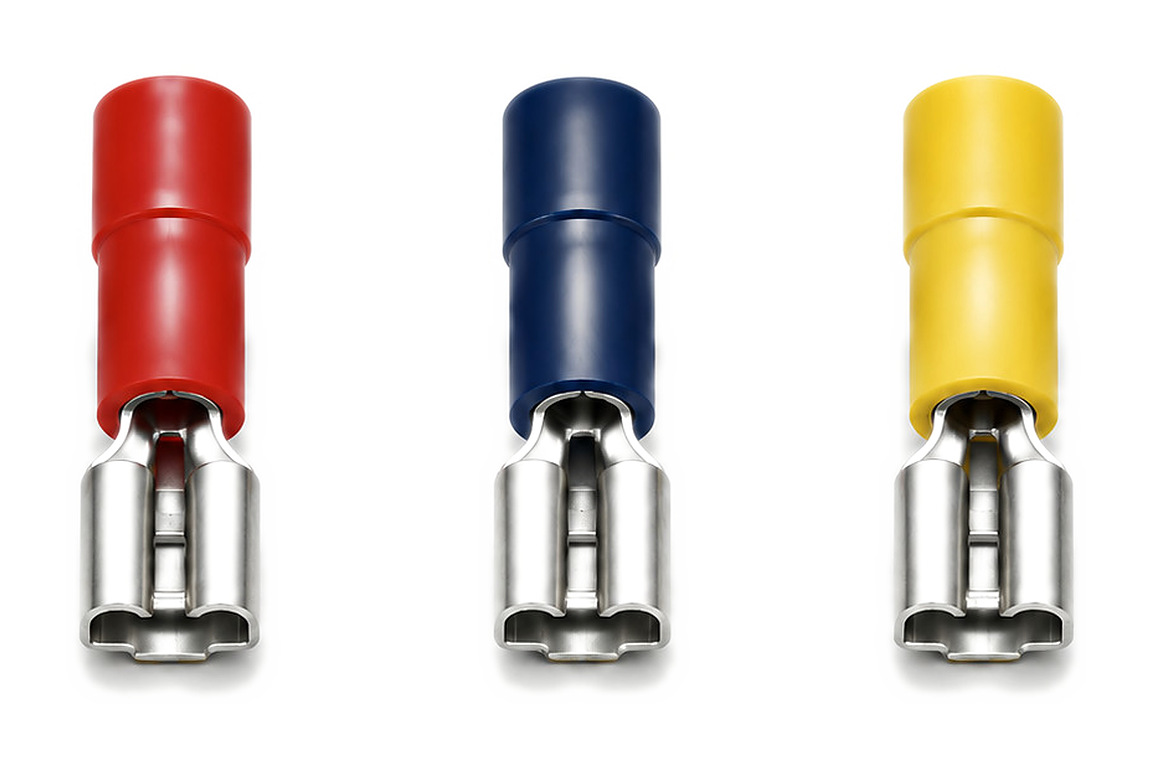

Female Quick Disconnect
| Item No | Nema Tab (mm) | L (mm) | PCS/Pack | Colour | Wire Range / Max Current |
|---|---|---|---|---|---|
| T2210 | 0.8x4.75 | 19.0 | 1000 | Red | 0.5–1.5mm², 10A |
| T2212 | 0.8x6.38 | 21.0 | 1000 | Blue | 1.5–2.5mm², 27A |
| T2213 | 0.8x6.38 | 24.0 | 500 | Yellow | 4–6mm², 24A |
Piggy Back (Female + Male)
| Item No | Nema Tab (mm) | L (mm) | PCS/Pack | Colour | Wire Range / Max Current |
|---|---|---|---|---|---|
| T2220 | 0.8x6.35 | 21.5 | 1000 | Red | 0.5–1.5mm², 10A |
| T2221 | 0.8x6.35 | 21.5 | 500 | Blue | 1.5–2.5mm², 27A |
| T2222 | 0.8x6.35 | 24.0 | 500 | Yellow | 4–6mm², 24A |
Bullet Male / Female
| Item No | W (mm) | L (mm) | PCS/Pack | Colour | Wire Range / Max Current |
|---|---|---|---|---|---|
| T2250 | 4.0 | 21.0 | 1000 | Red | 0.5–1.5mm², 10A |
| T2253 | 5.0 | 21.0 | 1000 | Blue | 1.5–2.5mm², 15A |
| T2254 | 5.0 | 24.0 | 500 | Yellow | 4–6mm², 24A |
| T2260 | 3.9 | 23.3 | 1000 | Red | 0.5–1.5mm², 10A |
| T2263 | 4.9 | 25.0 | 500 | Yellow | 4–6mm², 24A |
Standards & Compliance
Certified to recognised standards
