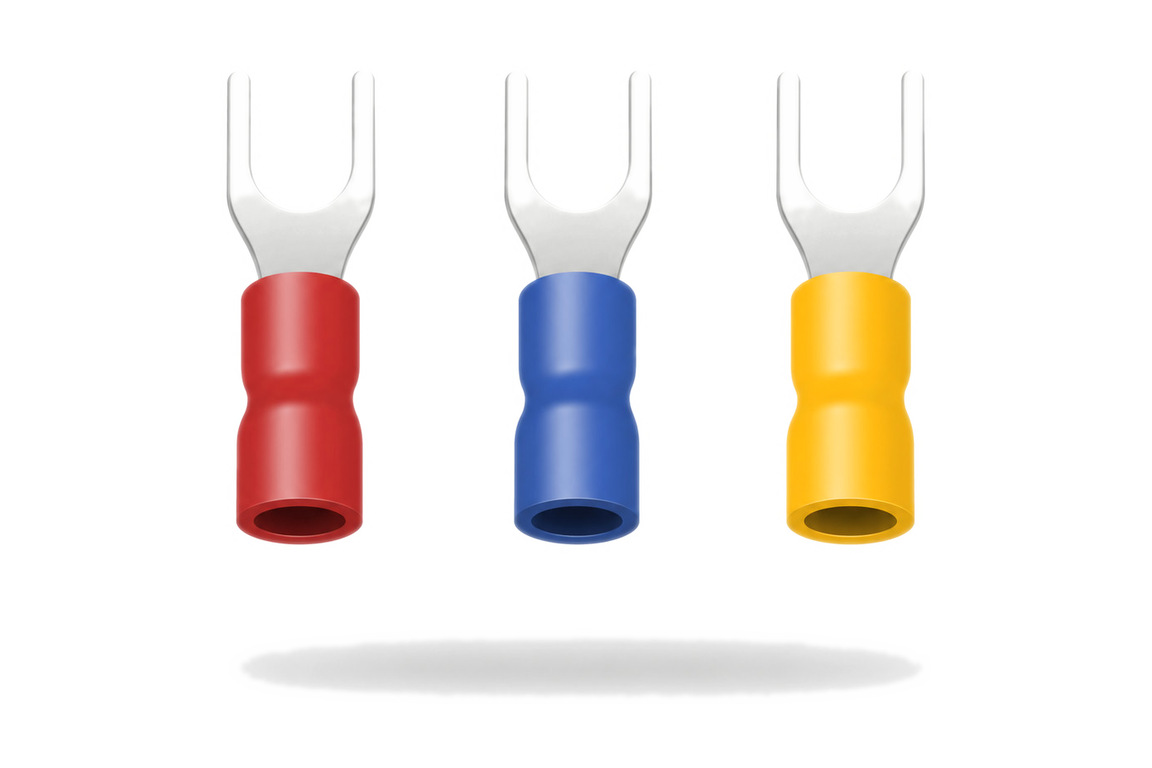

Spade Terminals
Fork-style crimp terminals for fast connect/disconnect at a screw terminal.
Application
Where Spade Terminals is used
Where a connection needs to be removed without fully unscrewing the stud — the open fork slides out sideways, commonly used on terminal blocks and relay panels.
- ✓Maximum electrical rating: 600 volts
- ✓Maximum temperature: 75°C
- ✓Terminal material: copper, tin plated
- ✓Insulation material: vinyl (PVC)
- ✓'Easy entry' funnel mouth on T1500 series
Part Numbers & Dimensions
Full technical reference
All figures are from our current production datasheet. Contact us for the signed PDF version for procurement.
Spade Terminals, Easy Entry
| Item No | Stud Size (Metric) | Stud Size (American) | d2 (mm) | W (mm) | F (mm) | L (mm) | PCS/Pack | Colour | Wire Range / Max Current |
|---|---|---|---|---|---|---|---|---|---|
| T1500-4 | 4 | #8 | 4.3 | 6.4 | 6.5 | 21.2 | 1000 | Red | 0.5–1.5mm² (22–16AWG), 19A |
| T1530-5 | 5 | #10 | 5.3 | 8.1 | 6.5 | 21.5 | 1000 | Blue | 1.5–2.5mm² (16–14AWG), 27A |
| T1570-6 | 6 | 1/4" | 6.4 | 9.0 | 7.5 | 25.5 | 500 | Yellow | 4–6mm² (12–10AWG), 48A |
Spade Terminals, Standard
| Item No | Stud Size (Metric) | Stud Size (American) | d2 (mm) | W (mm) | F (mm) | L (mm) | PCS/Pack | Colour | Wire Range / Max Current |
|---|---|---|---|---|---|---|---|---|---|
| T2101-4 | 4 | #8 | 4.3 | 6.4 | 6.5 | 21.5 | 1000 | Red | 0.5–1.5mm² (22–16AWG), 19A |
| T2130-6 | 6 | 1/4" | 6.4 | 9.5 | 6.5 | 21.5 | 1000 | Blue | 1.5–2.5mm² (16–14AWG), 27A |
| T2170-8 | 8 | 5/16" | 8.4 | 14.0 | 11.5 | 30.7 | 500 | Yellow | 4–6mm² (12–10AWG), 48A |
