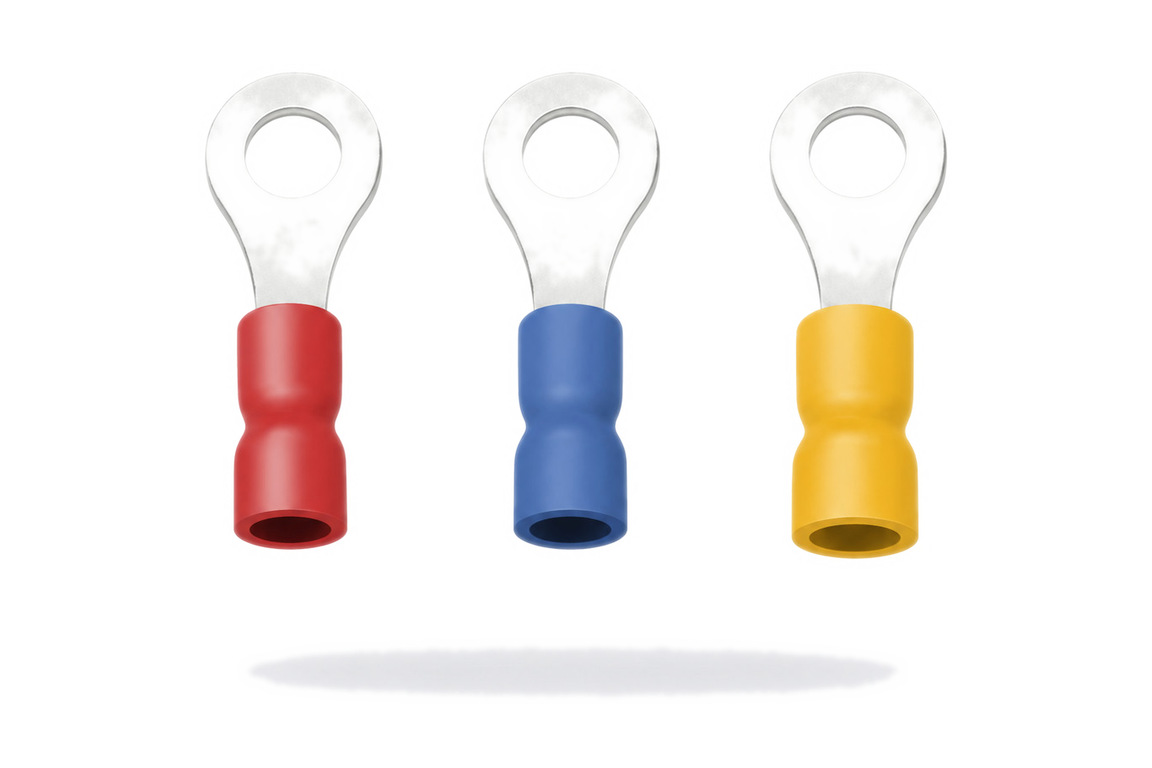

Ring Terminals
Crimp ring terminals, insulated, colour-coded by wire range.
Application
Where Ring Terminals is used
Standard crimp connection for bolting a wire to a stud, post or bus bar — the most common terminal style for panel wiring and battery connections.
- ✓Maximum electrical rating: 600 volts
- ✓Maximum temperature: 75°C
- ✓Terminal material: copper, tin plated
- ✓Insulation material: vinyl (PVC)
- ✓'Easy entry' funnel mouth on T1001/T1030/T1070 series for fast wire insertion
Part Numbers & Dimensions
Full technical reference
All figures are from our current production datasheet. Contact us for the signed PDF version for procurement.
Ring Terminals, Easy Entry
| Item No | Stud Size (Metric) | Stud Size (American) | d2 (mm) | W (mm) | F (mm) | L (mm) | PCS/Pack | Colour | Wire Range / Max Current |
|---|---|---|---|---|---|---|---|---|---|
| T1001-4 | 4 | #8 | 4.3 | 6.6 | 6.3 | 19.6 | 1000 | Red | 0.5–1.5mm² (22–16AWG), 19A |
| T1001-6 | 6 | 1/4" | 6.4 | 11.6 | 11.2 | 27.0 | 1000 | Red | 0.5–1.5mm² (22–16AWG), 19A |
| T1030-5 | 5 | #10 | 5.3 | 8.5 | 7.5 | 22.0 | 1000 | Blue | 1.5–2.5mm² (16–14AWG), 27A |
| T1030-8 | 8 | 5/16" | 8.4 | 12.0 | 11.0 | 27.0 | 1000 | Blue | 1.5–2.5mm² (16–14AWG), 27A |
| T1070-6 | 6 | 1/4" | 6.4 | 12.0 | 10.5 | 29.5 | 500 | Yellow | 4–6mm² (12–10AWG), 48A |
| T1070-10 | 10 | 3/8" | 10.5 | 15.0 | 13.5 | 34.0 | 500 | Yellow | 4–6mm² (12–10AWG), 48A |
Ring Terminals, Standard
| Item No | Stud Size (Metric) | Stud Size (American) | d2 (mm) | W (mm) | F (mm) | L (mm) | PCS/Pack | Colour | Wire Range / Max Current |
|---|---|---|---|---|---|---|---|---|---|
| T2001-4 | 4 | #8 | 4.3 | 6.6 | 6.3 | 19.6 | 1000 | Red | 0.5–1.5mm² (22–16AWG), 19A |
| T2030-6 | 6 | 1/4" | 6.4 | 12.0 | 11.0 | 27.0 | 1000 | Blue | 1.5–2.5mm² (16–14AWG), 27A |
| T2070-8 | 8 | 5/16" | 8.4 | 15.0 | 13.5 | 34.0 | 500 | Yellow | 4–6mm² (12–10AWG), 48A |
Standards & Compliance
Certified to recognised standards
Why Voltaris
What forty years of manufacturing gives you.
- 01
Own PVC compounding
Special resin produced in-house, in any colour, for consistent quality batch to batch.
- 02
OEM & private label
Many customers today started as private-brand buyers — we build to your spec and your label.
- 03
Flexible packaging
Reels in plastic or wood, coils, small bobbins, bulk or retail-ready packaging.
- 04
Export logistics
Direct shipping lanes from Shanghai and Ningbo ports to distributors worldwide.
