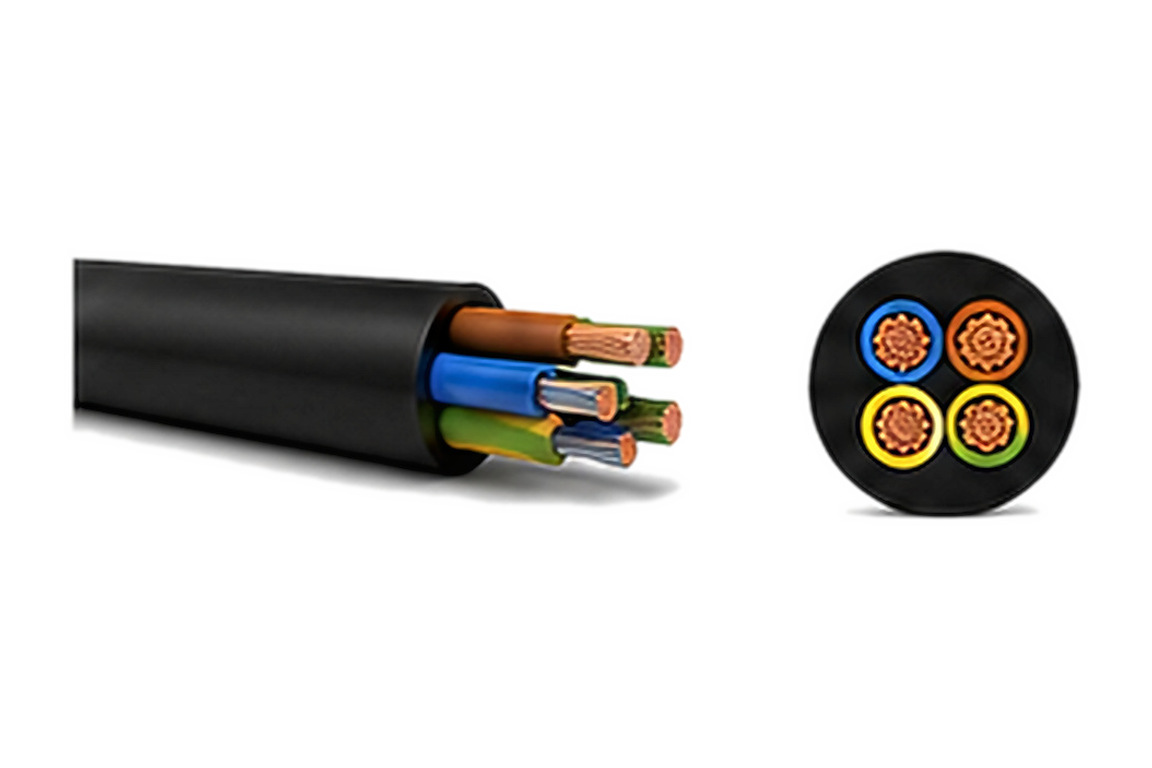

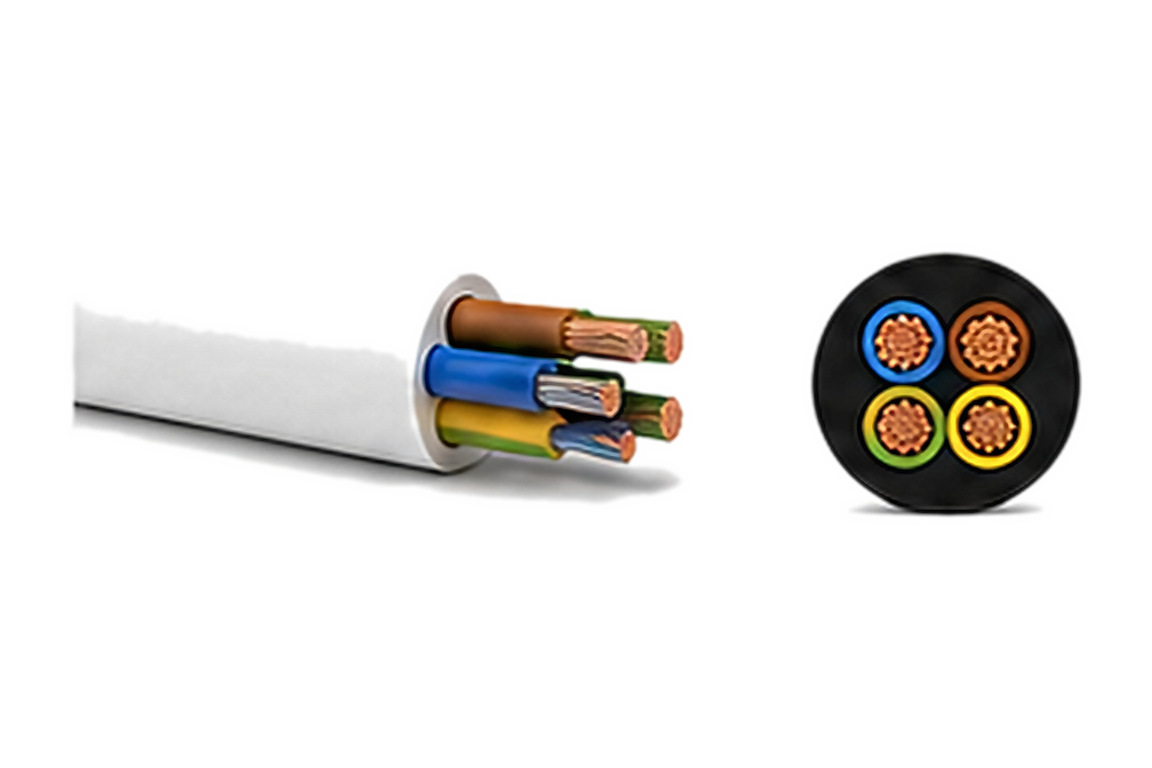

BVV Multi-Core
PVC insulated & sheathed non-flexible cable, 1–4 cores.
Application
Where BVV Multi-Core is used
Fixed surface or embedded wiring where a sheathed rigid cable is required — sub-mains, final circuits and protected runs at 300/500 V & 450/750 V, 70°C.
- ✓PVC insulated & PVC sheathed
- ✓Rigid solid or class-2 stranded conductors
- ✓1 to 4 cores
- ✓70°C conductor temperature
Part Numbers & Dimensions
Full technical reference
All figures are from our current production datasheet. Contact us for the signed PDF version for procurement.
BVV — by Core Count
| Cores | Nominal Area (mm²) | Structure (mm) | Approx Overall Dia (mm) |
|---|---|---|---|
| 1 core | 1.0 | 1/1.13 | 4.00 |
| 1 core | 1.5 | 1/1.38 | 4.20 |
| 1 core | 1.5 | 7/0.52 | 4.40 |
| 1 core | 2.5 | 1/1.78 | 4.80 |
| 1 core | 2.5 | 7/0.68 | 5.00 |
| 1 core | 4.0 | 1/2.25 | 5.80 |
| 1 core | 4.0 | 7/0.85 | 6.00 |
| 2 cores | 1.5 | 1/1.38 | 7.60 |
| 2 cores | 1.5 | 7/0.524 | 7.60 |
| 2 cores | 2.5 | 1/1.78 | 9.40 |
| 2 cores | 2.5 | 7/0.68 | 9.40 |
| 2 cores | 4.0 | 1/2.25 | 11.00 |
| 2 cores | 4.0 | 7/0.85 | 11.00 |
| 3 cores | 1.5 | 1/1.38 | 8.50 |
| 3 cores | 1.5 | 7/0.52 | 8.50 |
| 3 cores | 2.5 | 1/1.78 | 10.00 |
| 3 cores | 2.5 | 7/0.68 | 10.00 |
| 3 cores | 4.0 | 1/2.25 | 11.70 |
| 3 cores | 4.0 | 7/0.85 | 11.70 |
| 4 cores | 1.5 | 1/1.38 | 9.20 |
| 4 cores | 1.5 | 7/0.524 | 9.20 |
| 4 cores | 2.5 | 1/1.78 | 10.90 |
| 4 cores | 2.5 | 7/0.68 | 10.90 |
| 4 cores | 4.0 | 1/2.25 | 12.80 |
| 4 cores | 4.0 | 7/0.85 | 12.80 |
