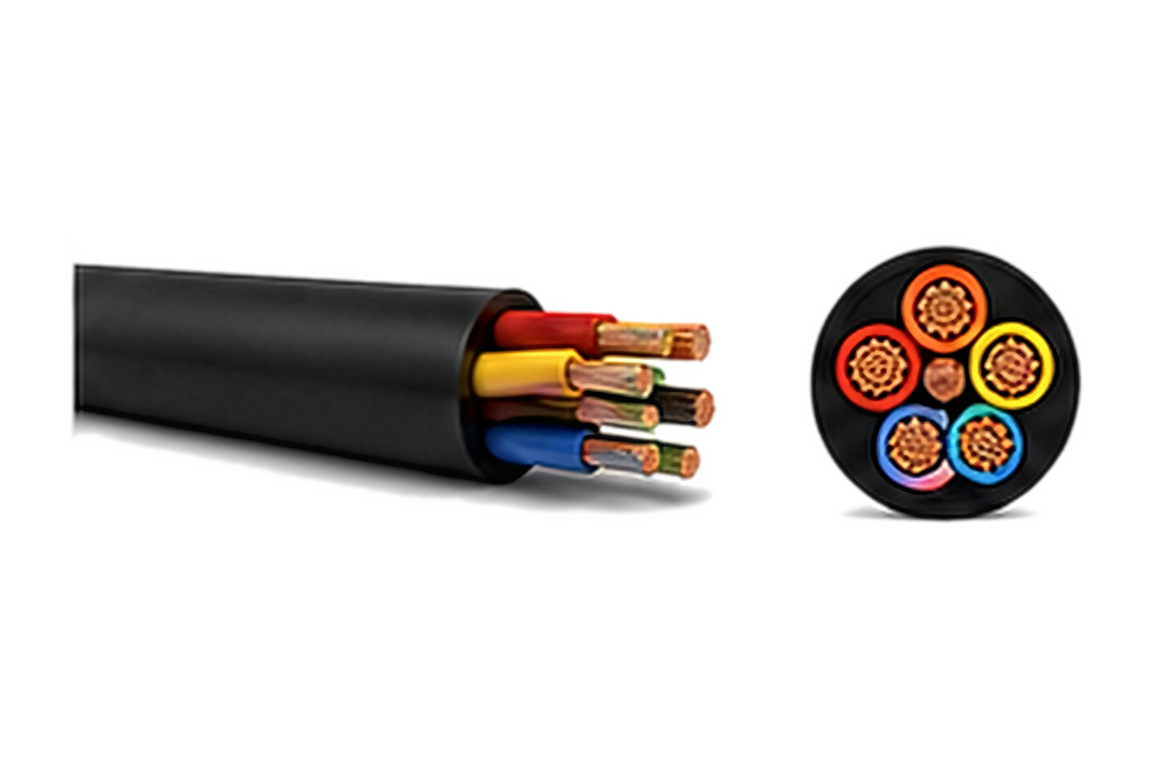

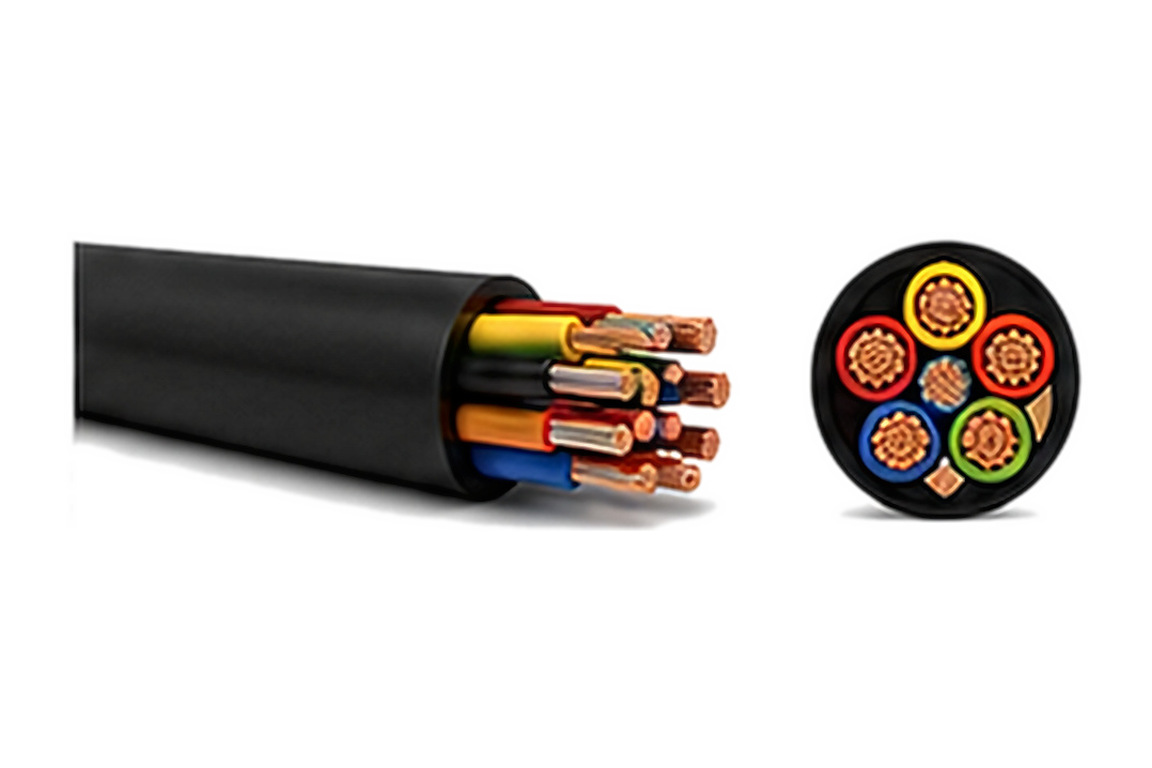

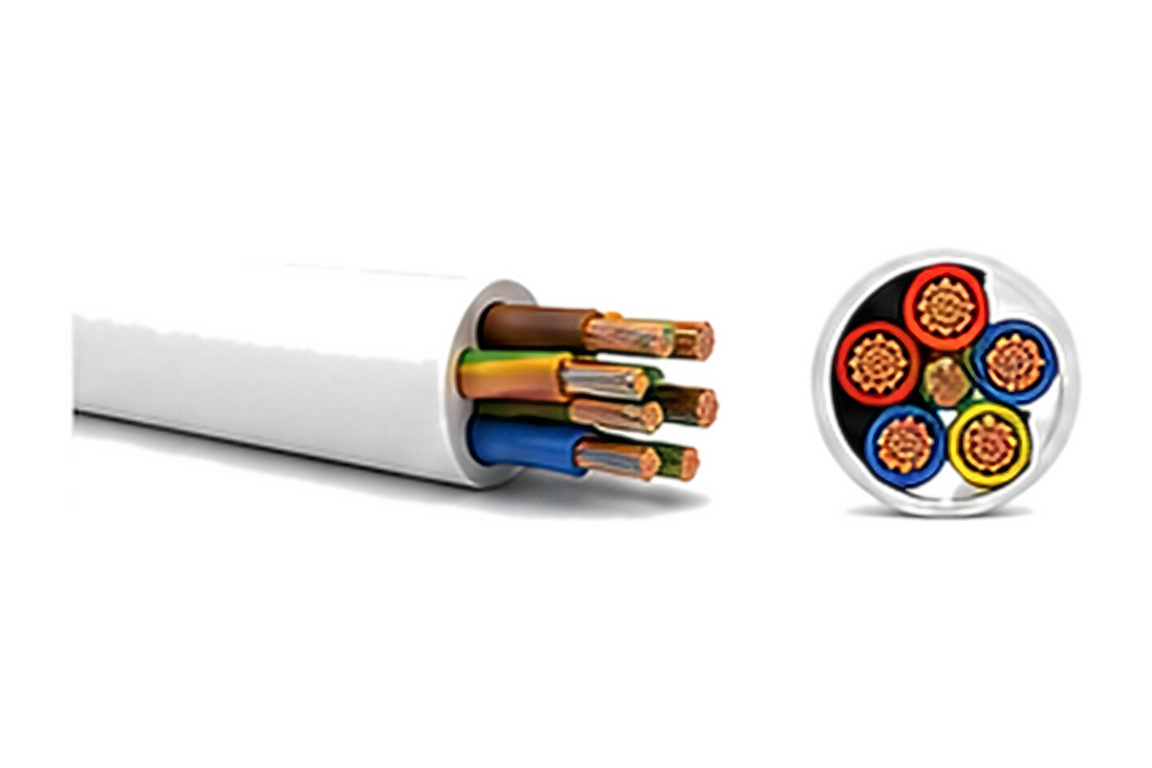

H03VV-F / H05VV-F Multi-Core
PVC insulated & sheathed flexible cable, 2–5 cores.
Application
Where H03VV-F / H05VV-F Multi-Core is used
Flexible cords for domestic and light-industrial appliances, extension leads and equipment connection — CE / VDE / BS, 300/500 V & 450/750 V, 70°C.
- ✓PVC insulated & PVC sheathed flexible cable
- ✓2 to 5 cores
- ✓CE / VDE / BS standard
- ✓Rated 300/500 V & 450/750 V, 70°C
Part Numbers & Dimensions
Full technical reference
All figures are from our current production datasheet. Contact us for the signed PDF version for procurement.
Reference by Core Count
| Cores | Nominal Area (mm²) | Structure (mm) | Insulation Thickness (mm) | Min Diameter (mm) | Max Diameter (mm) |
|---|---|---|---|---|---|
| 2 cores | 0.5 | 29/0.15 | 0.6 | 5.6 | 7.2 |
| 2 cores | 0.75 | 43/0.15 | 0.6 | 6.0 | 7.6 |
| 2 cores | 1.0 | 32/0.20 | 0.6 | 6.4 | 8.0 |
| 2 cores | 1.5 | 30/0.25 | 0.7 | 7.4 | 9.0 |
| 2 cores | 2.5 | 49/0.25 | 0.8 | 8.9 | 11.0 |
| 3 cores | 0.5 | 29/0.15 | 0.6 | 5.9 | 7.7 |
| 3 cores | 0.75 | 43/0.15 | 0.6 | 6.4 | 8.0 |
| 3 cores | 1 | 32/0.20 | 0.6 | 6.8 | 8.4 |
| 3 cores | 1.5 | 30/0.25 | 0.7 | 8.0 | 9.8 |
| 3 cores | 2.5 | 49/0.25 | 0.8 | 9.6 | 12.0 |
| 3 cores | 4.0 | 56/0.30 | 0.8 | 11.0 | 13.0 |
| 4 cores | 1.0 | 32/0.20 | 0.6 | 7.6 | 9.4 |
| 4 cores | 1.5 | 30/0.25 | 0.7 | 9.0 | 11.0 |
| 4 cores | 2.5 | 49/0.25 | 0.8 | 10.5 | 13.0 |
| 4 cores | 4.0 | 56/0.30 | 0.8 | 12.0 | 14.0 |
| 5 cores | 1.0 | 32/0.20 | 0.6 | 8.3 | 10.0 |
| 5 cores | 1.5 | 30/0.25 | 0.6 | 10.0 | 12.0 |
| 5 cores | 2.5 | 49/0.25 | 0.7 | 11.5 | 14.0 |
| 5 cores | 4.0 | 56/0.30 | 0.8 | 13.5 | 15.5 |
Standards & Compliance
Certified to recognised standards
Why Voltaris
What forty years of manufacturing gives you.
- 01
Own PVC compounding
Special resin produced in-house, in any colour, for consistent quality batch to batch.
- 02
OEM & private label
Many customers today started as private-brand buyers — we build to your spec and your label.
- 03
Flexible packaging
Reels in plastic or wood, coils, small bobbins, bulk or retail-ready packaging.
- 04
Export logistics
Direct shipping lanes from Shanghai and Ningbo ports to distributors worldwide.
