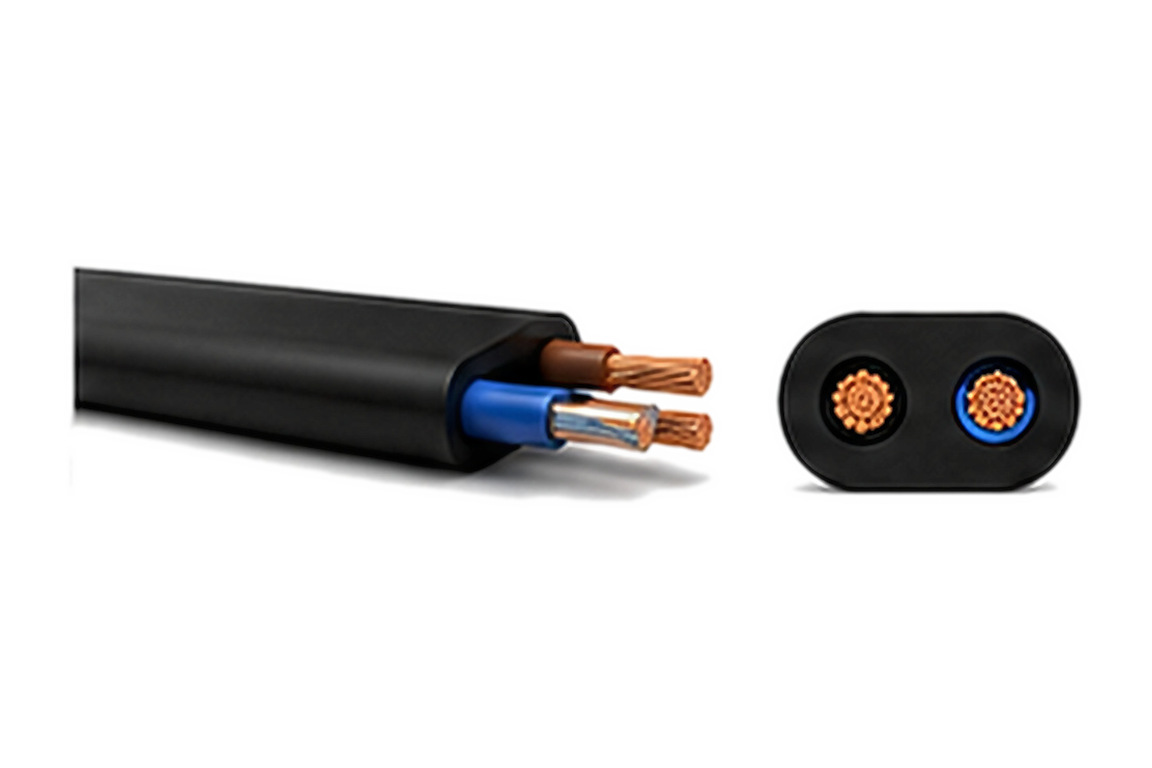

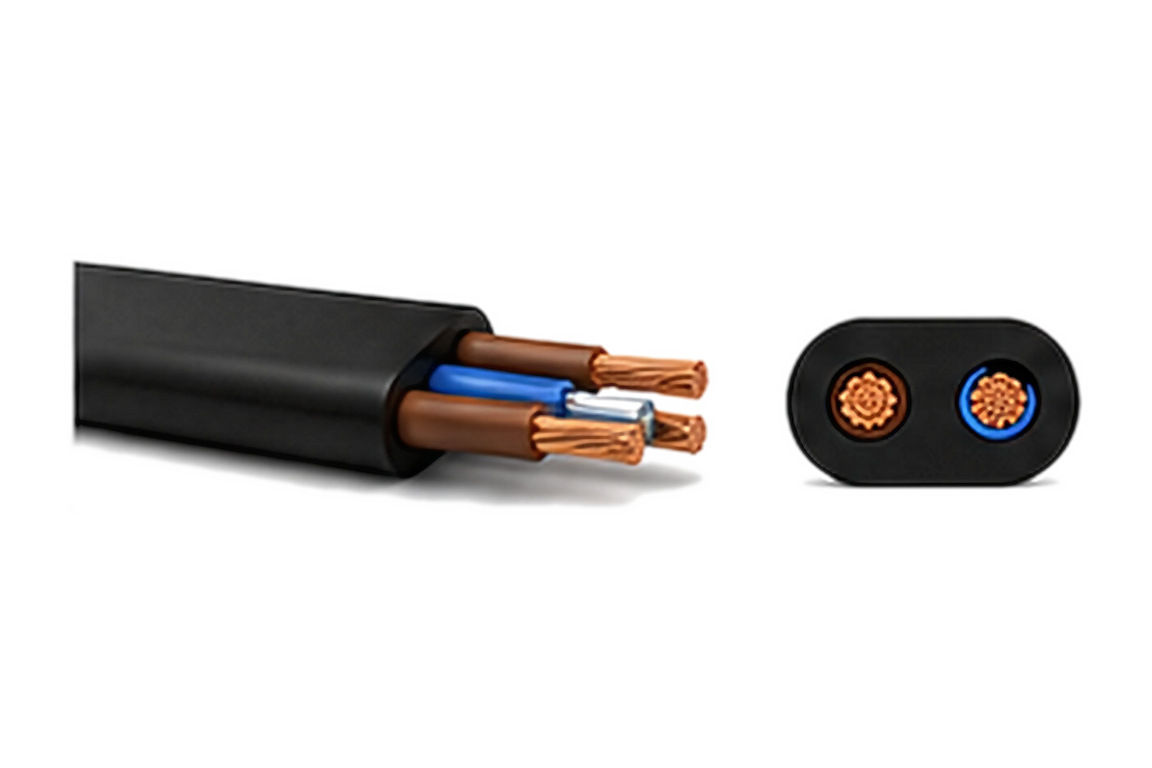

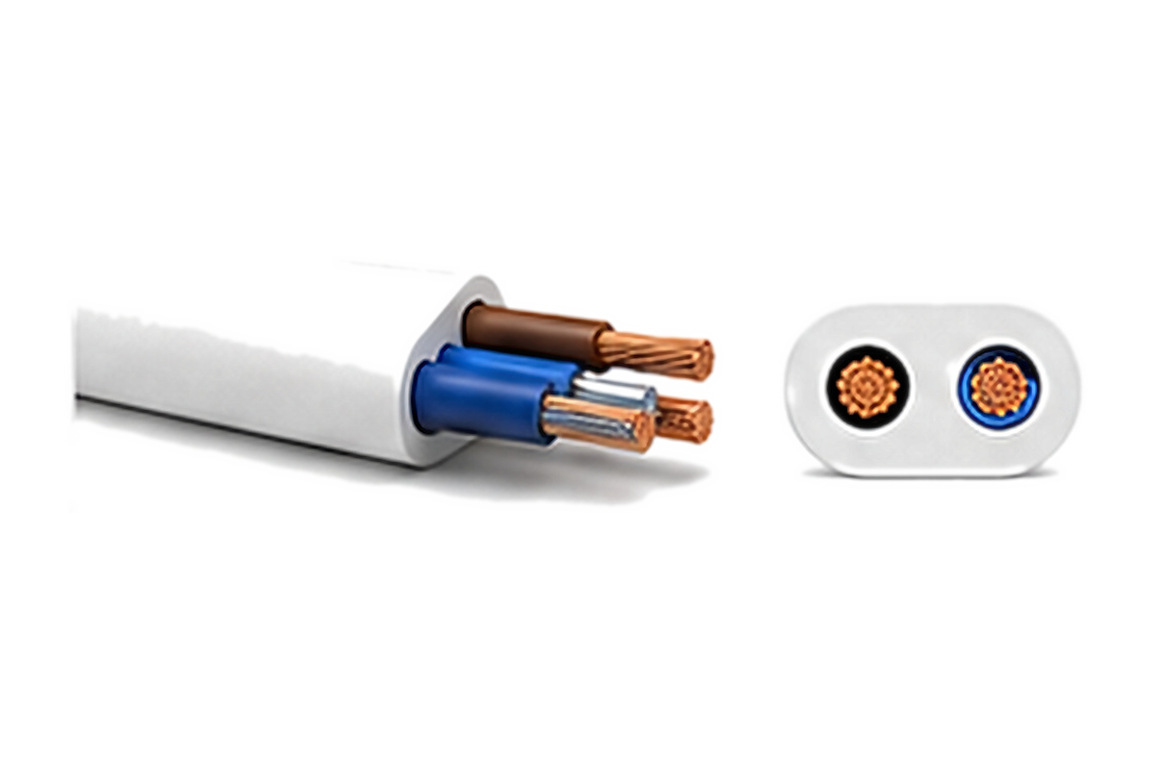

H03VVH2-F / H05VVH2-F Flat Cable
PVC insulated & sheathed flexible flat cable to CE / VDE / BS.
Application
Where H03VVH2-F / H05VVH2-F Flat Cable is used
Flat flexible cords for light appliances and luminaires where a low-profile twin or triple is needed — CE / VDE / BS standard.
- ✓Flat profile, PVC insulated & sheathed
- ✓Flexible copper conductors
- ✓2 and 3 core builds
- ✓CE / VDE / BS standard
Part Numbers & Dimensions
Full technical reference
All figures are from our current production datasheet. Contact us for the signed PDF version for procurement.
H03VVH2-F / H05VVH2-F
| Cores × Area (mm²) | Structure (mm) | Insulation Thickness (mm) | Core Nominal Dia (mm) | Sheath Thickness (mm) | Outside — Lower Limit (mm) | Outside — Upper Limit (mm) |
|---|---|---|---|---|---|---|
| 2x0.75 | 45/0.2 | 0.6 | 2.17 | 0.9 | 4.0x6.2 | 4.6x7.1 |
| 2x1.0 | 32/0.2 | 0.6 | 2.33 | 0.9 | 4.2x6.5 | 4.8x7.4 |
| 2x1.5 | 30/0.25 | 0.7 | 2.78 | 0.9 | 4.6x7.4 | 5.3x8.5 |
| 2x2.5 | 49/0.25 | 0.8 | 3.38 | 1.0 | 5.2x8.6 | 6.2x10.1 |
| 3x0.75 | 24/0.2 | 0.6 | 2.17 | 0.9 | 4.0x8.4 | 4.6x9.6 |
| 3x1.0 | 32/0.2 | 0.6 | 2.33 | 0.9 | 4.2x8.8 | 4.8x10.1 |
| 3x1.5 | 30/0.25 | 0.7 | 2.78 | 0.9 | 4.6x10.2 | 5.3x11.7 |
| 3x2.5 | 49/0.25 | 0.8 | 3.38 | 1.0 | 5.2x12 | 6.2x14.0 |
