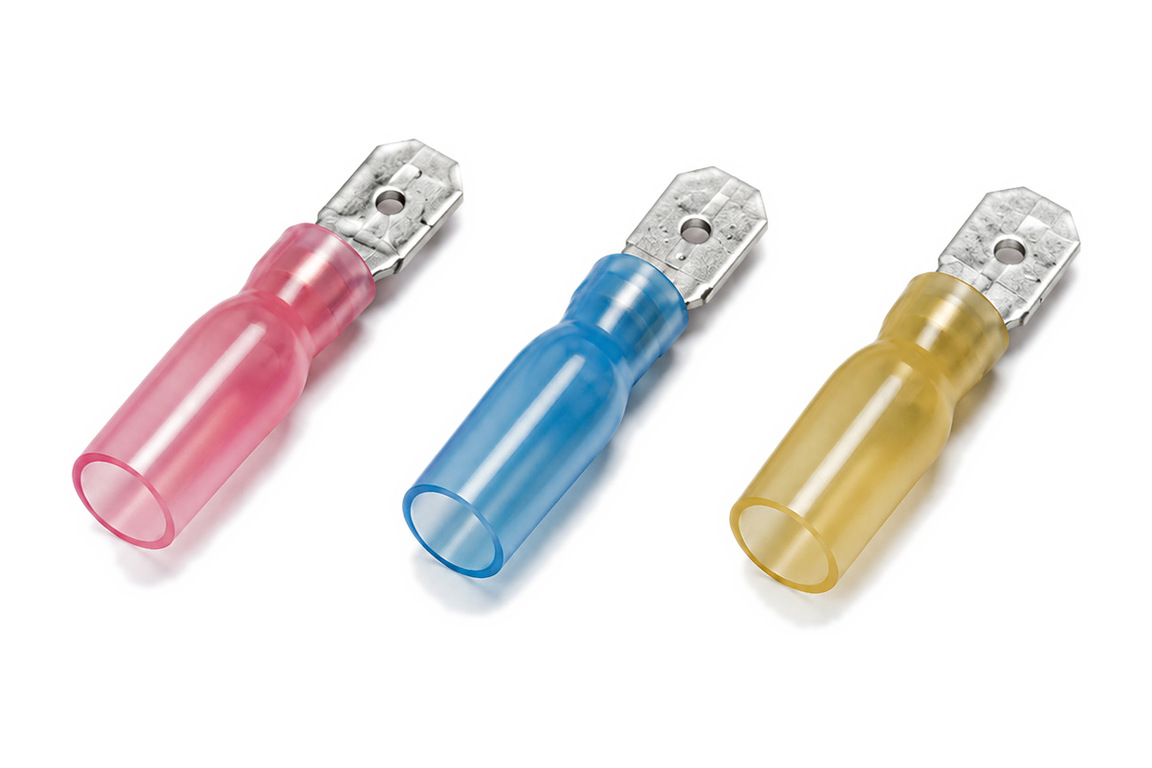

Heat Shrink Quick Disconnect & Bullet Terminals
Sealed quick-disconnect and bullet connectors for marine and outdoor plug connections.
Application
Where Heat Shrink Quick Disconnect & Bullet Terminals is used
Anywhere a quick-disconnect plug needs to survive spray, bilge moisture or outdoor weather — the heat-shrink sleeve seals the crimp once installed.
- ✓Operating temperature: -55°C to 125°C
- ✓Start shrinkage temperature: 80°C
- ✓Terminal material: copper, tin plated
- ✓Male, female and fully-insulated bullet styles available
Part Numbers & Dimensions
Full technical reference
All figures are from our current production datasheet. Contact us for the signed PDF version for procurement.
Heat Shrink Female / Male Quick Disconnect
| Item No | Nema Tab (mm) | L (mm) | PCS/Pack | Colour | Wire Range / Max Current |
|---|---|---|---|---|---|
| T2502 | 0.8x6.35 | 30 | 1000 | Red | 0.5–1.5mm², 10A |
| T2522 | 0.8x6.35 | 30 | 1000 | Blue | 1.5–2.5mm², 15A |
| T2523 | 0.8x6.35 | 34 | 500 | Yellow | 4–6mm², 24A |
Heat Shrink Bullet Male / Female
| Item No | W (mm) | L (mm) | PCS/Pack | Colour | Wire Range / Max Current |
|---|---|---|---|---|---|
| T2570 | 4.0 | 30 | 1000 | Red | 0.5–1.5mm², 10A |
| T2572 | 5.0 | 30 | 1000 | Blue | 1.5–2.5mm², 15A |
| T2591 | 3.9 | 32.3 | 1000 | Blue | 1.5–2.5mm², 15A |
