Heat Shrink Ring & Spade Terminals
Ring and spade terminals with an adhesive-lined heat-shrink sleeve for a sealed crimp.
Application
Where Heat Shrink Ring & Spade Terminals is used
Marine, automotive and outdoor connections where the crimp needs to be sealed against moisture — the sleeve shrinks and seals once heat is applied.
- ✓Operating temperature: -55°C to 125°C
- ✓Start shrinkage temperature: 80°C
- ✓Minimum complete shrinkage temperature: 130°C
- ✓Terminal material: copper, tin plated
- ✓Insulation material: PE, adhesive-lined
Part Numbers & Dimensions
Full technical reference
All figures are from our current production datasheet. Contact us for the signed PDF version for procurement.

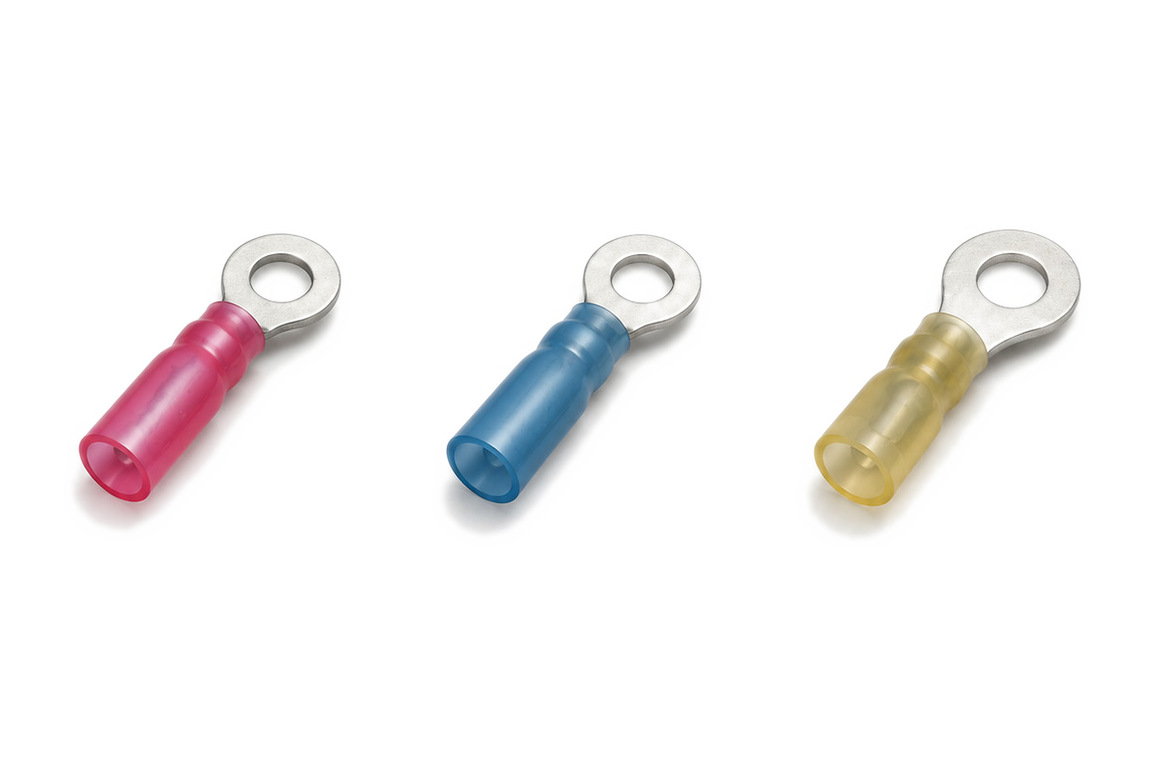

Heat Shrink Ring Terminal
| Item No | Stud Size (Metric) | Stud Size (American) | L (mm) | PCS/Pack | Colour | Wire Range / Max Current |
|---|---|---|---|---|---|---|
| T2300-4 | 4 | #8 | 28.6 | 1000 | Red | 0.5–1.5mm², 19A |
| T2330-6 | 6 | 1/4" | 36.0 | 1000 | Blue | 1.5–2.5mm², 27A |
| T2370-8 | 8 | 5/16" | 43.0 | 500 | Yellow | 4–6mm², 48A |

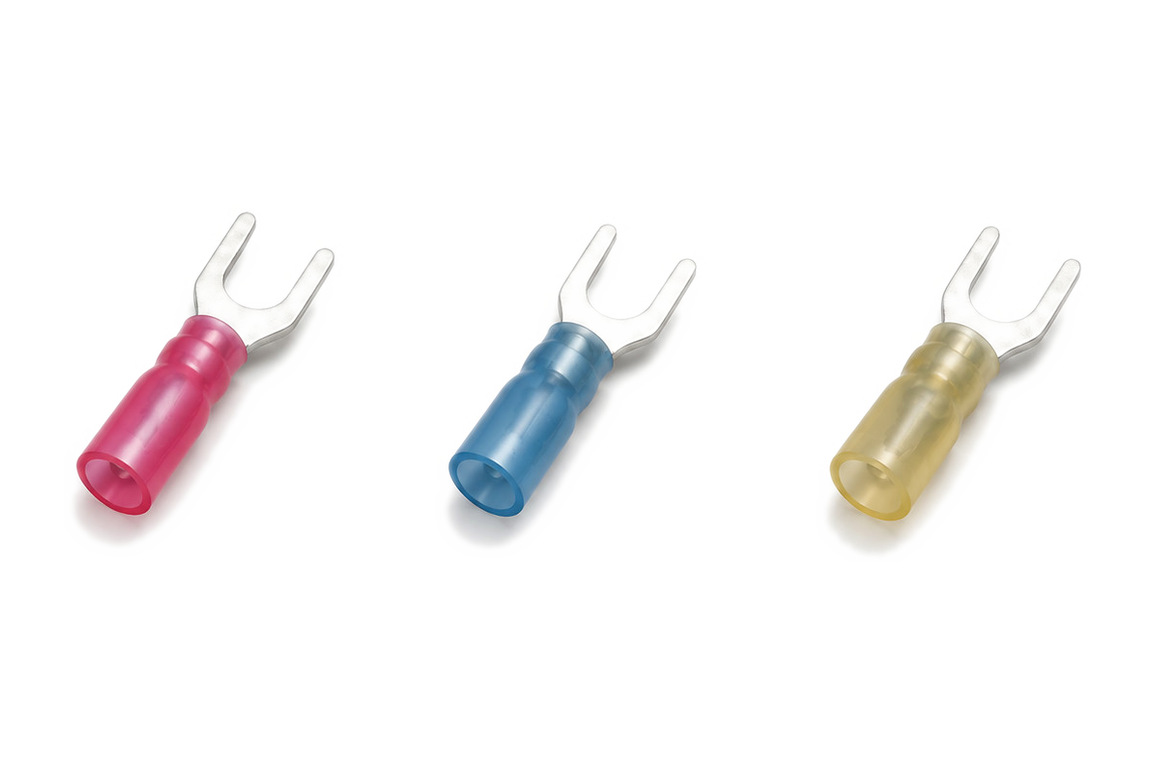

Heat Shrink Spade Terminal
| Item No | Stud Size (Metric) | Stud Size (American) | L (mm) | PCS/Pack | Colour | Wire Range / Max Current |
|---|---|---|---|---|---|---|
| T2400-4 | 4 | #8 | 30.2 | 1000 | Red | 0.5–1.5mm², 19A |
| T2430-6 | 6 | 1/4" | 36.2 | 1000 | Blue | 1.5–2.5mm², 27A |
| T2470-8 | 8 | 5/16" | 39.7 | 500 | Yellow | 4–6mm², 48A |
