Quick Splice Connectors
Insulation-displacement splice connectors for tapping a new wire without stripping.
Application
Where Quick Splice Connectors is used
Adding a branch circuit or accessory feed to an existing run without cutting and stripping the main wire — clamp shut with pliers to pierce both conductors at once.
- ✓Maximum electrical rating: 300 volts
- ✓Maximum temperature: 75°C
- ✓Terminal body: brass, tin plated
- ✓Insulation: vinyl
Part Numbers & Dimensions
Full technical reference
All figures are from our current production datasheet. Contact us for the signed PDF version for procurement.

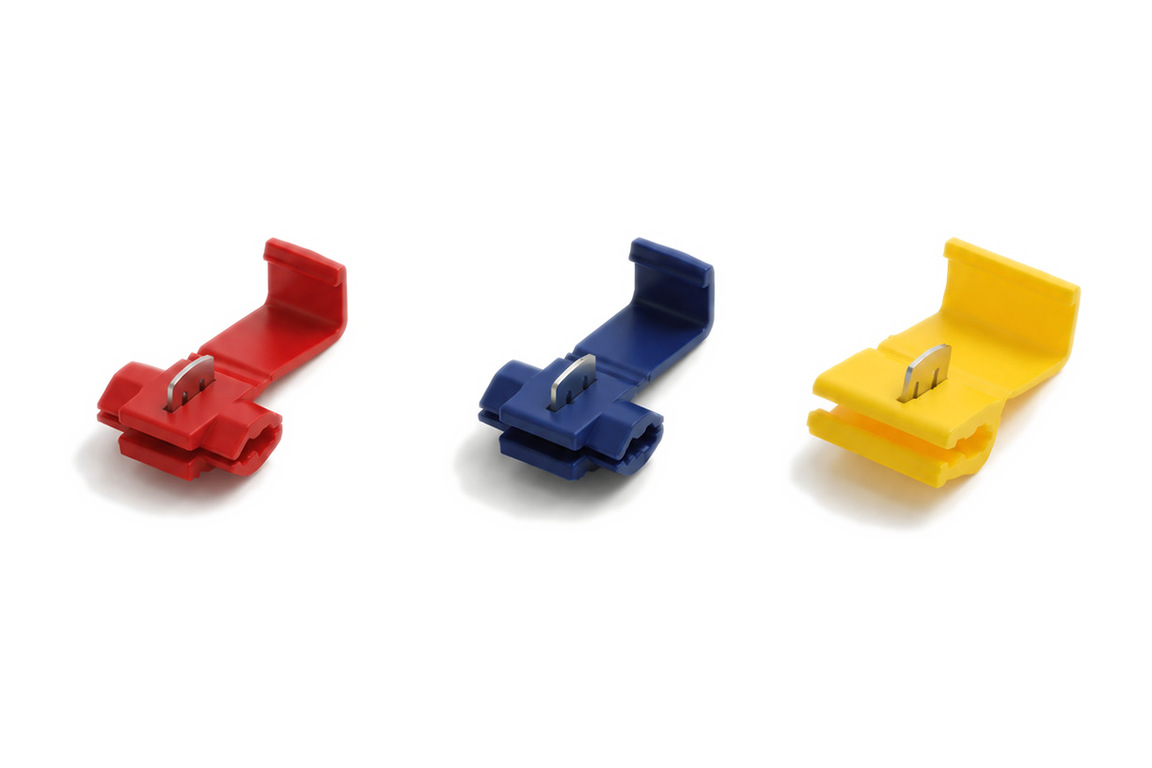

Quick Splice Connector (with male tab)
| Item No | Wire Range (AWG/mm²) | Suggested Mate | W (mm) | L (mm) | PCS/Pack | Colour |
|---|---|---|---|---|---|---|
| T2610 | 22–18AWG / 0.5–0.75mm² | T2202 | 9.8 | 37 | 500 | Red |
| T2611 | 18–14AWG / 0.75–2.5mm² | T2203 | 9.8 | 37 | 500 | Blue |
| T2612 | 12–10AWG / 4mm² | T2204 | 9.8 | 37 | 500 | Yellow |

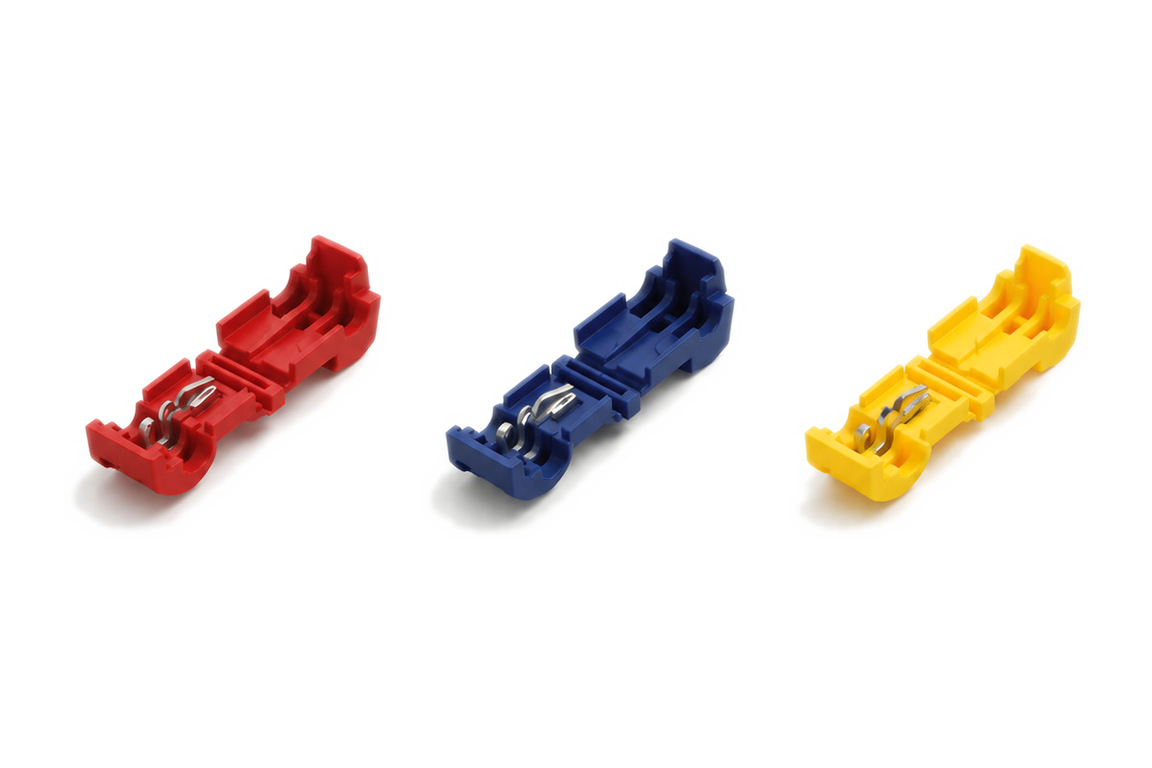

Quick Splice Connectors
| Item No | Wire Range (AWG/mm²) | W (mm) | L (mm) | PCS/Pack | Colour |
|---|---|---|---|---|---|
| 878110 | 22–18AWG / 0.5–0.75mm² | 20 | 27 | 200 | Red |
| 878101 | 18–14AWG / 0.5–2.5mm² | 20 | 27 | 200 | Blue |
| 878201 | 12–10AWG / 4–6mm² | 20.5 | 34.5 | 200 | Yellow |
