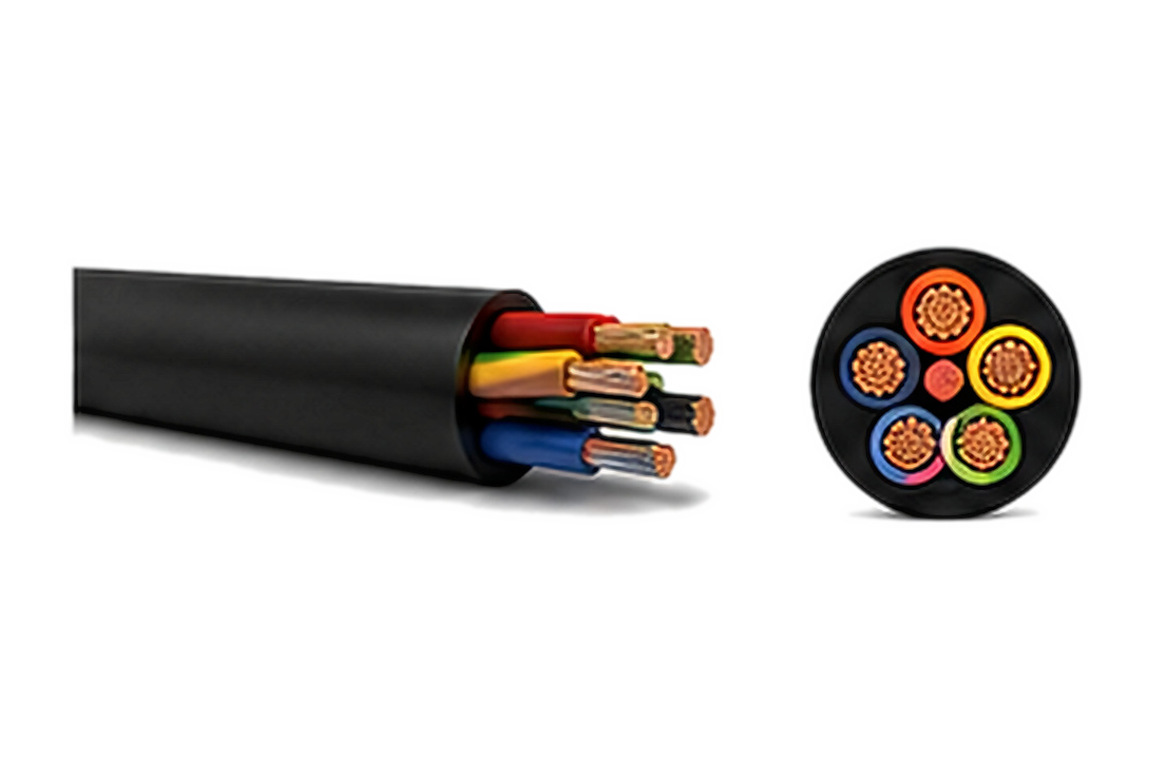

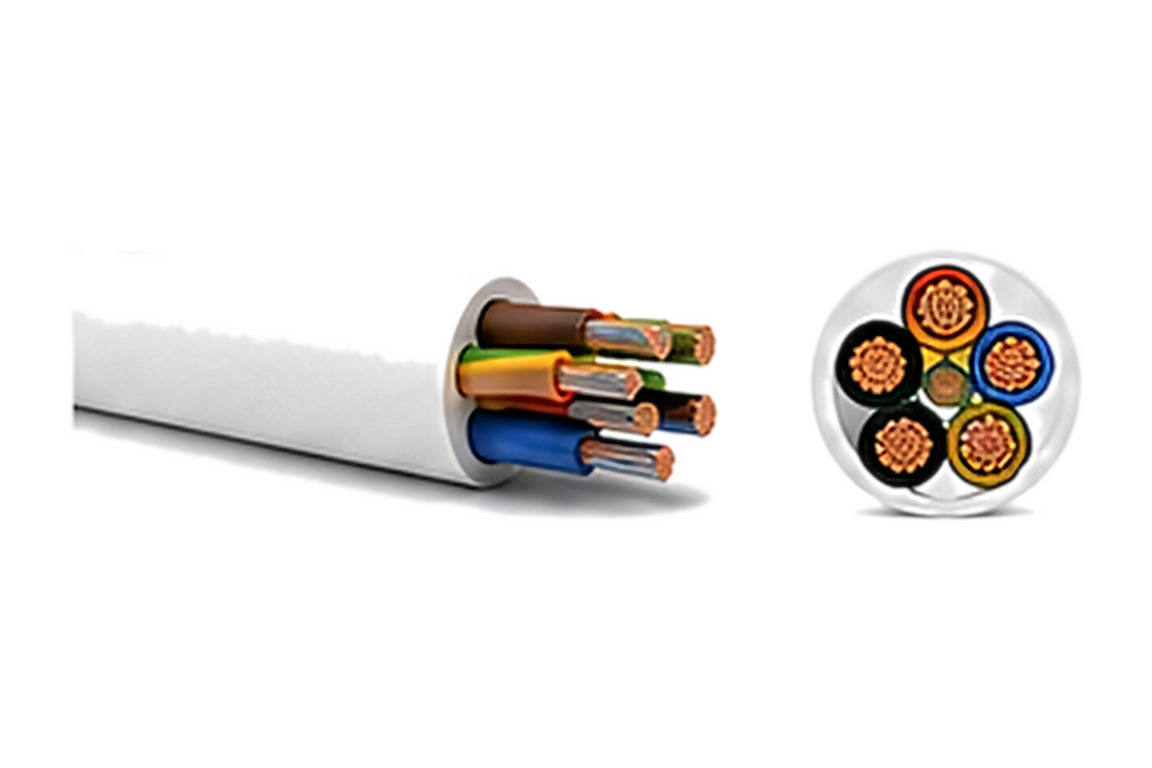

RVV Multi-Core
PVC insulated & sheathed flexible cable, 2–5 cores.
Application
Where RVV Multi-Core is used
Flexible sheathed connections for equipment, control panels and appliances at 300/500 V & 450/750 V, 70°C.
- ✓PVC insulated & PVC sheathed
- ✓Flexible copper conductors
- ✓2 to 5 cores
- ✓70°C conductor temperature
Part Numbers & Dimensions
Full technical reference
All figures are from our current production datasheet. Contact us for the signed PDF version for procurement.
RVV — by Core Count
| Cores | Nominal Area (mm²) | Structure (mm) | Approx Overall Dia (mm) |
|---|---|---|---|
| 2 cores | 0.5 | 28/0.15 | 5.20 |
| 2 cores | 0.75 | 24/0.20 | 6.40 |
| 2 cores | 1.0 | 32/0.20 | 6.60 |
| 2 cores | 1.5 | 30/0.25 | 7.60 |
| 2 cores | 2.5 | 49/0.25 | 9.40 |
| 3 cores | 0.5 | 28/0.15 | 5.50 |
| 3 cores | 0.75 | 24/0.20 | 6.80 |
| 3 cores | 1.0 | 32/0.20 | 7.20 |
| 3 cores | 1.5 | 30/0.25 | 8.50 |
| 3 cores | 2.5 | 49/0.25 | 10.00 |
| 3 cores | 4.0 | 56/0.30 | 11.70 |
| 3 cores | 6.0 | 84/0.30 | 13.00 |
| 4 cores | 1.0 | 32/0.20 | 8.00 |
| 4 cores | 1.5 | 30/0.25 | 9.20 |
| 4 cores | 2.5 | 49/0.25 | 11.00 |
| 4 cores | 4.0 | 56/0.30 | 12.80 |
| 4 cores | 6.0 | 84/0.30 | 15.40 |
| 4 cores | 10.0 | 126/0.32 | 18.80 |
| 5 cores | 1.5 | 30/0.25 | 10.70 |
| 5 cores | 2.5 | 49/0.25 | 12.80 |
| 5 cores | 4.0 | 56/0.30 | 14.50 |
| 5 cores | 6.0 | 84/0.30 | 16.40 |
| 5 cores | 10.0 | 126/0.32 | 21.10 |
| 5 cores | 16.0 | 126/0.40 | 25.40 |
