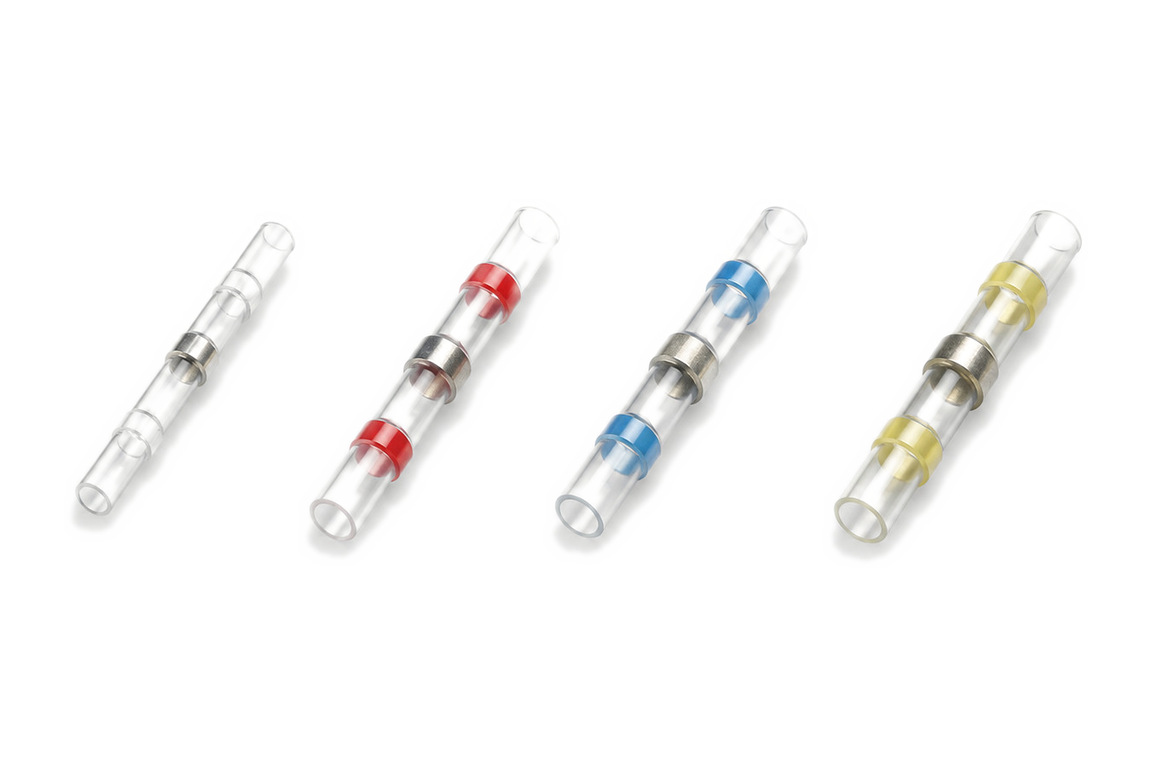

Solder Splice Connectors
Waterproof solder-and-shrink splice for a permanent, sealed joint between two wires.
Application
Where Solder Splice Connectors is used
Permanent in-line splices exposed to water or vibration — a low-temperature solder ring melts to join the conductors while the outer sleeve shrinks and seals the joint.
- ✓Heat-shrinkable outer tubing
- ✓Low-temperature solder sleeve at the centre
- ✓Waterproof hot-melt adhesive at both ends
- ✓Colour-coded by wire range
Part Numbers & Dimensions
Full technical reference
All figures are from our current production datasheet. Contact us for the signed PDF version for procurement.
Solder Splice Connector, Waterproof
| Item No | Wire Range (AWG) | Wire Range (mm²) | PCS/Pack | Colour |
|---|---|---|---|---|
| T2600 | 26–24AWG | 0.25–0.34 | 1000 | Red |
| T2601 | 22–18AWG | 0.5–1.0 | 1000 | Red |
| T2602 | 16–14AWG | 1.5–2.5 | 1000 | Blue |
| T2603 | 12–10AWG | 4.0–6.0 | 500 | Yellow |
